Multi-process precision manufacturing, coordinated and quality-assured under one partner.
TruSkew is not a single shop floor. We're a precision manufacturing orchestrator — engineering and quality are run in-house, while production is routed to the partner in our vetted network best qualified for your part's process, tolerance, material and volume.
That means you don't compromise: every capability listed below is delivered to the same engineering review, the same first-article inspection and the same traceable documentation, regardless of which facility machines the part.

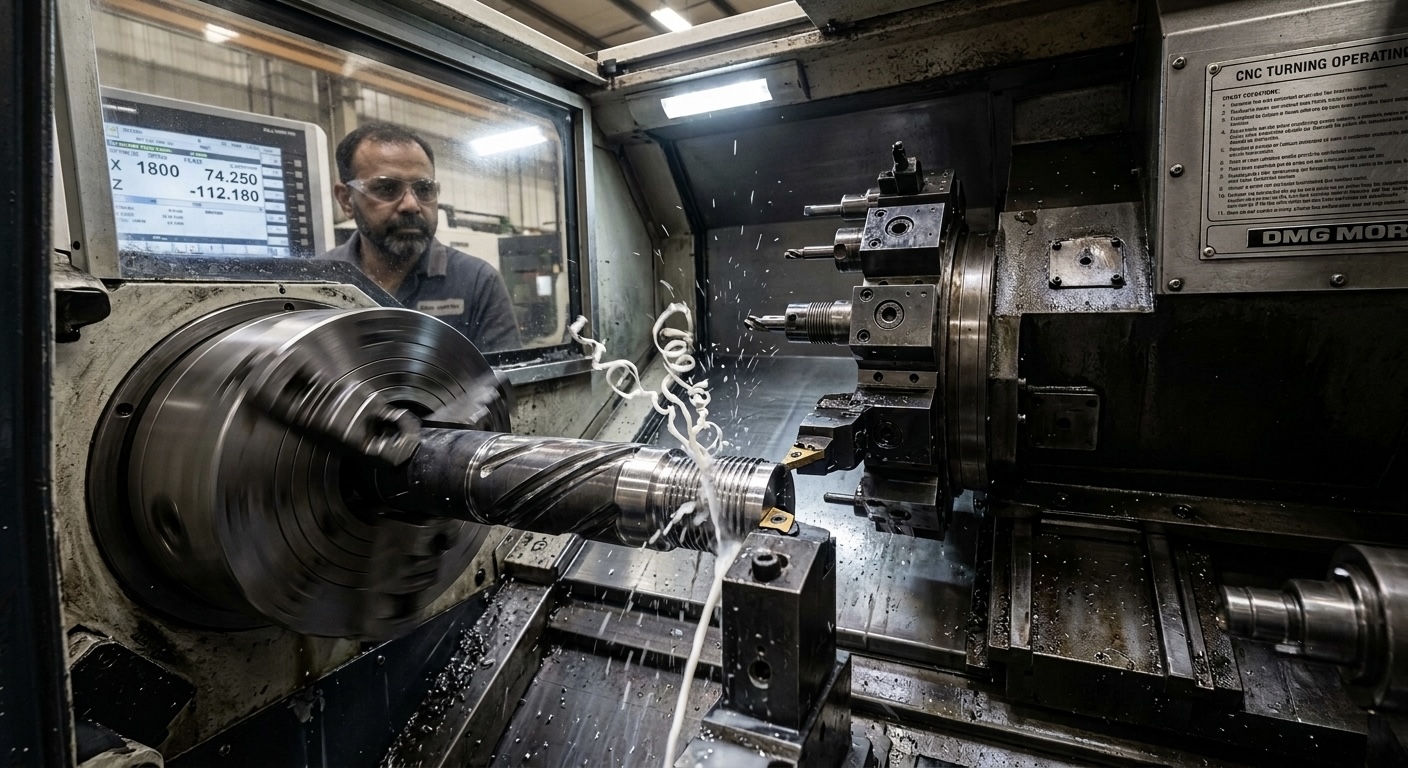

Bar and chuck work on Swiss-type, sliding-head and chucker lathes — including multi-axis turn-mill centres with live tooling for one-hit production of complex rotational parts.
Our turning cells run 24/7 across Swiss-type sliders for miniature high-volume parts (Ø 2–32 mm) and chucker lathes for larger diameter work up to Ø 320 mm. Bar feeders and gantry loaders enable lights-out production for repeat orders.
Multi-axis turn-mill centres with Y-axis, sub-spindle and live tooling machine cross-holes, flats, threads and slots in a single setup — eliminating re-fixturing errors and cutting lead time by up to 40% for parts that would otherwise route through both a lathe and a mill.

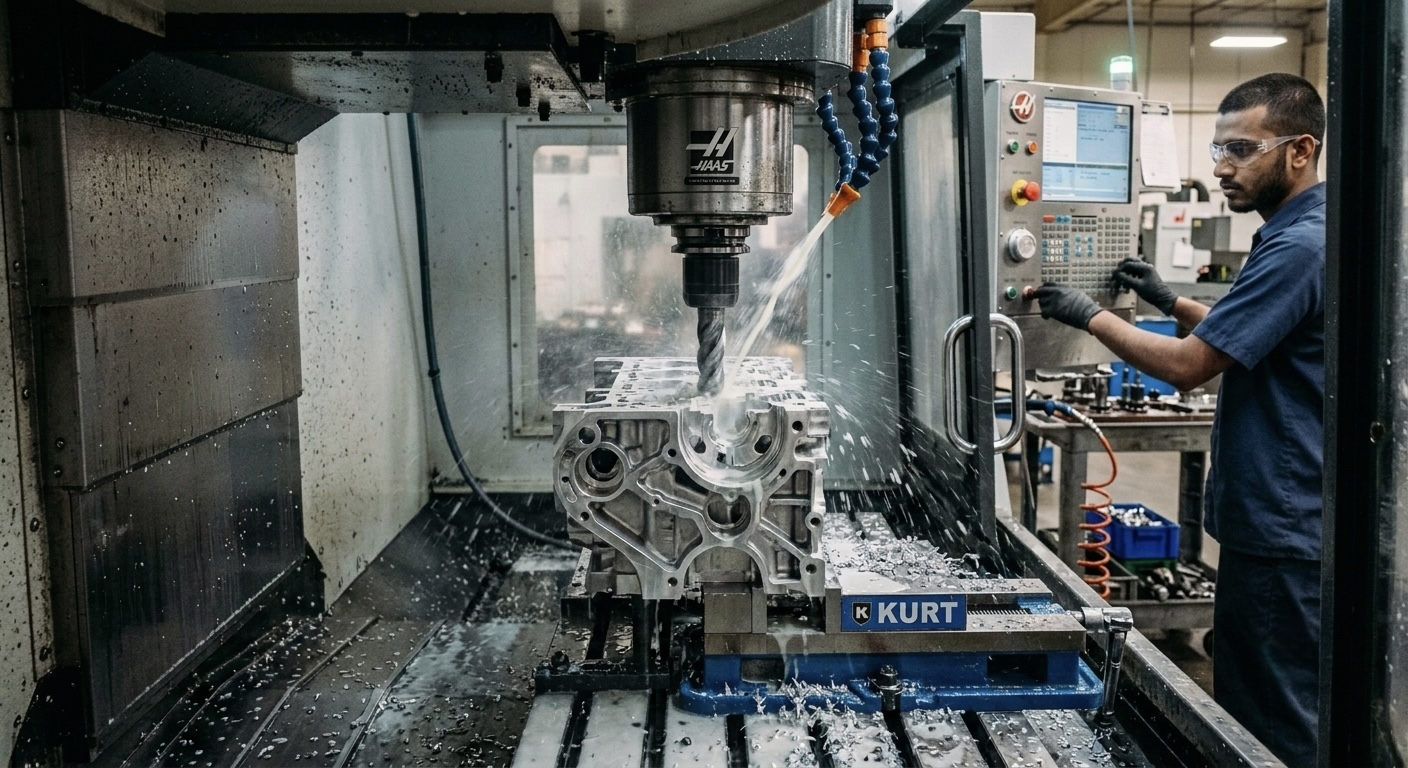

3-, 4- and 5-axis milling for prismatic and freeform geometries. 5-axis simultaneous machining enables complex aerospace and medical features in a single setup.
Vertical and horizontal machining centres with rigid castings, thermally-compensated spindles and high-pressure through-tool coolant handle everything from aluminium prototype brackets to titanium impellers.
5-axis simultaneous strategies keep the tool tip normal to complex surfaces, reducing setups from four or five down to one and holding true position on datum-critical features like turbine blades, orthopaedic implants and mould cores.

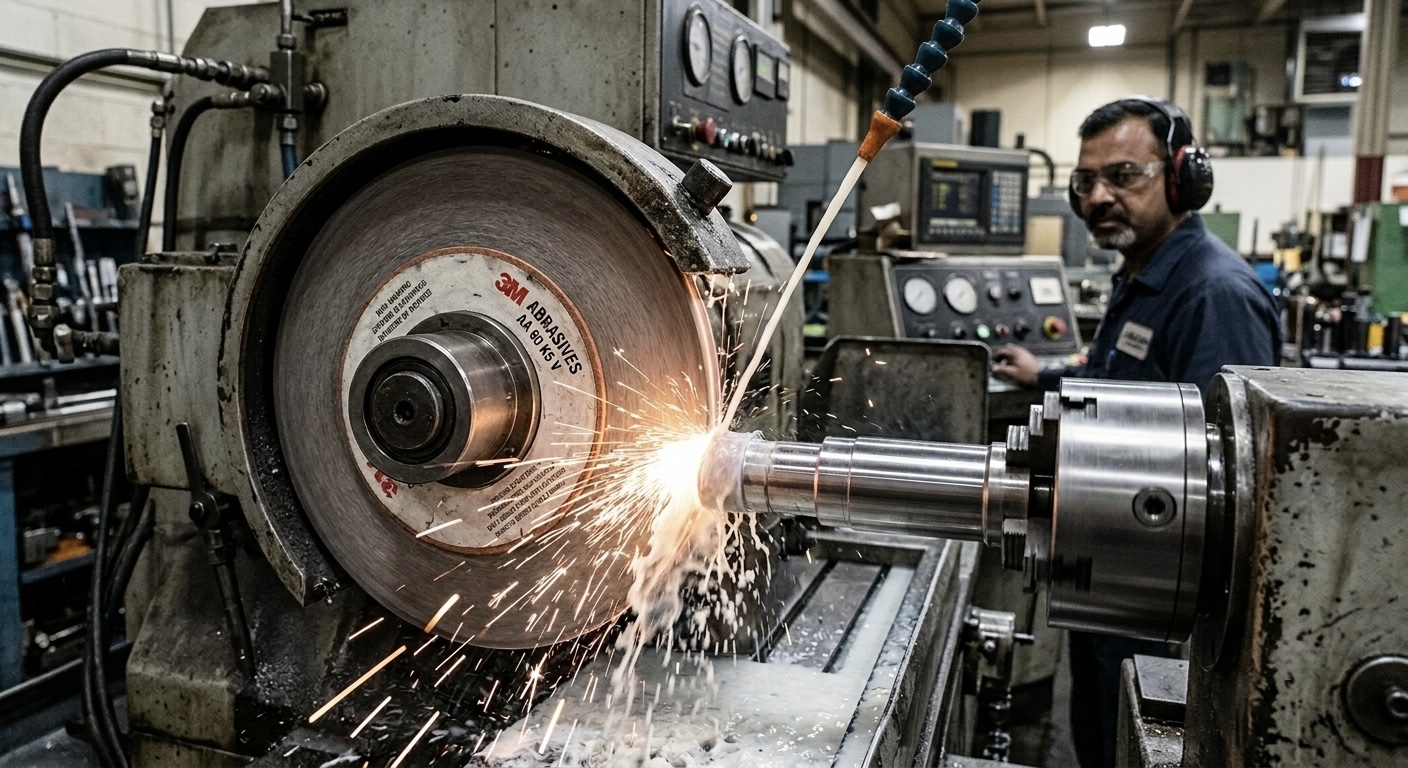

Cylindrical, surface and centerless grinding for hardened components requiring tight tolerances, fine surface finishes and high geometric accuracy.
CBN and vitrified aluminium-oxide wheels remove material at the micron scale while holding roundness under 1 µm and cylindricity within IT3–IT5. Coolant is temperature-controlled to eliminate thermal drift on long shafts.
Centerless grinding handles high-volume shafts and pins in continuous through-feed; surface grinding produces flat, parallel and perpendicular datum faces on hardened tooling and die plates.

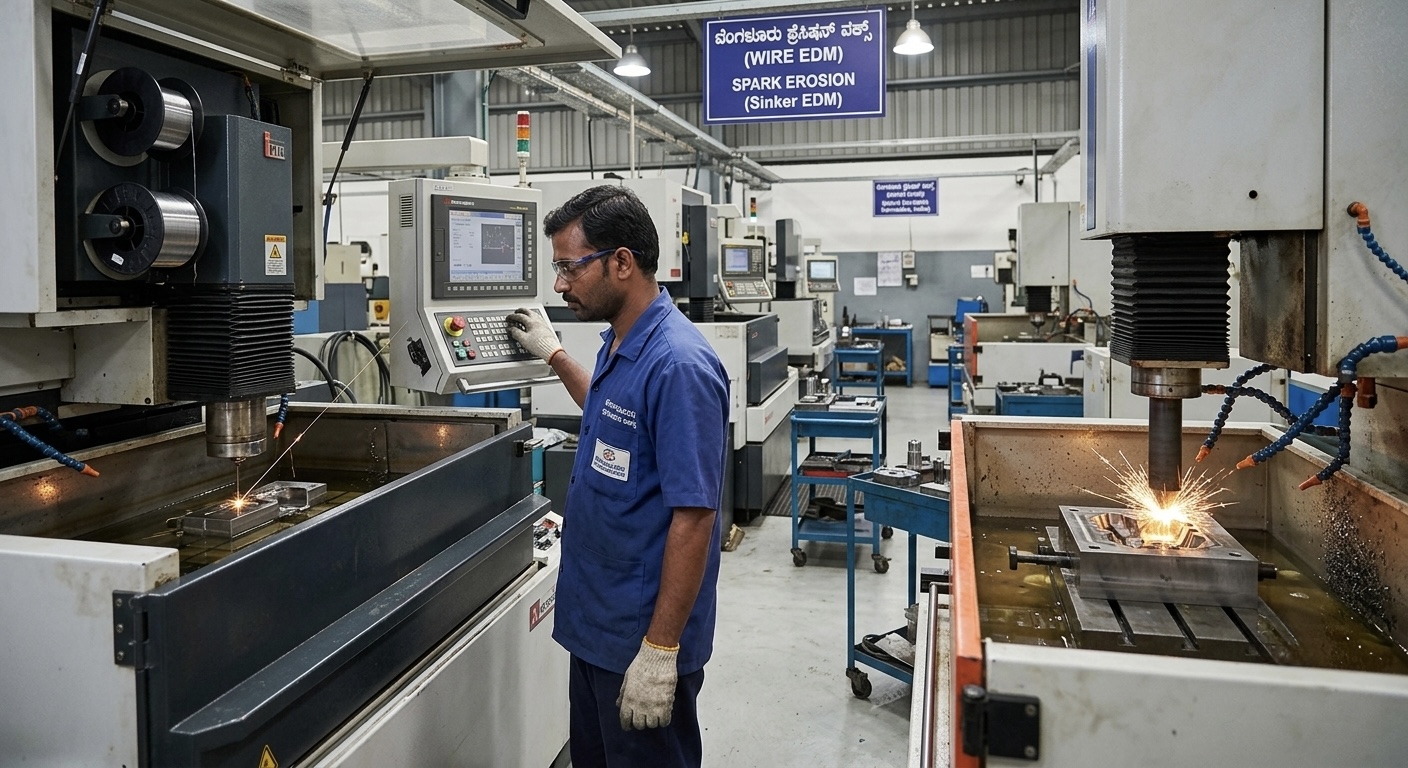

Wire EDM and sinker (die-sink) EDM for intricate profiles, deep cavities, narrow slots and hardened-material features that conventional cutting can't reach.
Because EDM removes material by spark erosion — not mechanical force — post-hardened tool steels, carbide and exotic alloys can be cut without softening or deflection. Wire diameters down to 0.10 mm produce internal corners with sub-25 µm radii.
Sinker EDM burns cavities from custom-graphite or copper electrodes, ideal for mould inserts, rib features and blind pockets that no mill can reach. Multi-pass finishing brings surfaces to Ra 0.2 µm without secondary polishing.

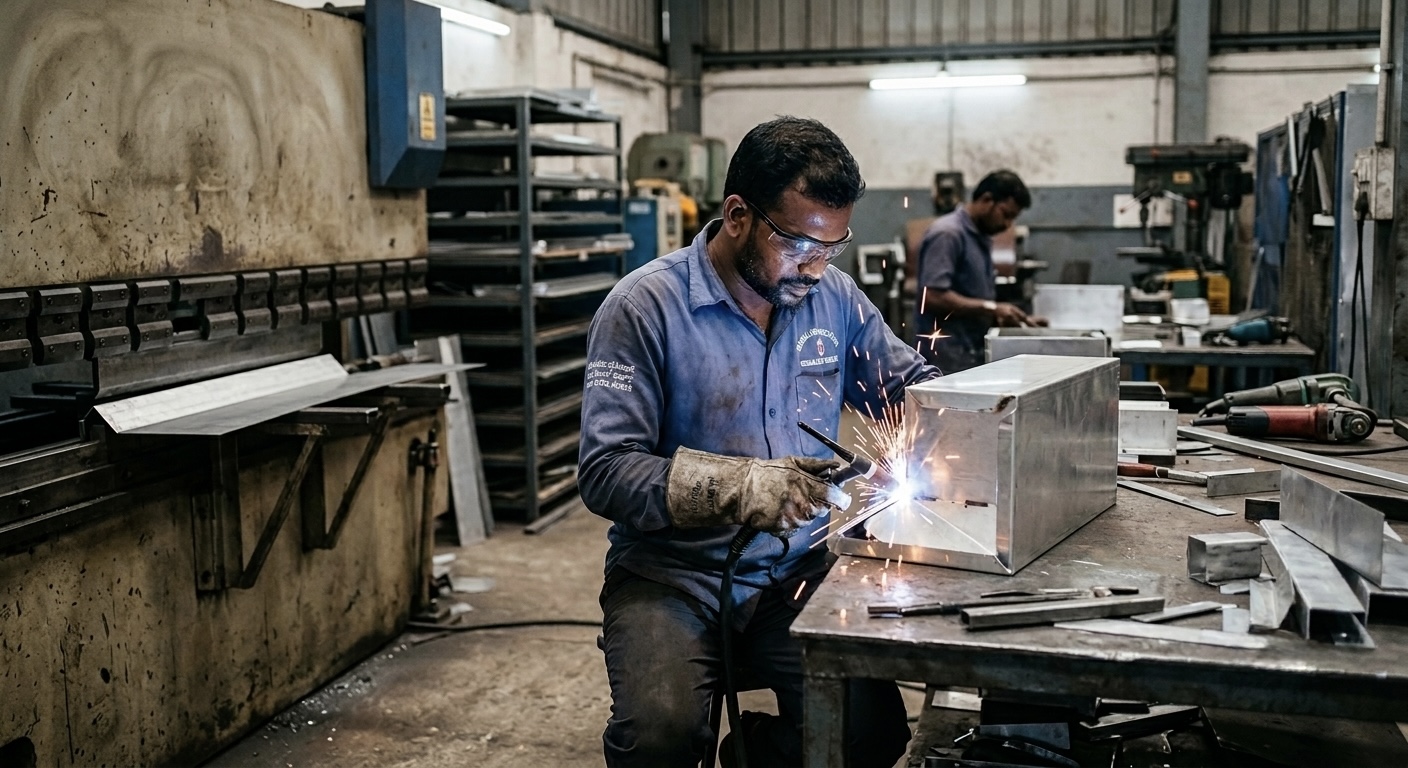

Fibre laser cutting, CNC press-brake bending, MIG / TIG / spot welding and finishing — from one-off enclosures to high-volume formed parts.
High-power fibre lasers cut mild steel up to 20 mm and stainless up to 12 mm with clean, dross-free edges — no secondary deburring needed on most gauges. Nesting software drives sheet utilisation above 85%.
Downstream press brakes with CNC back-gauges, robotic welding cells and integrated powder-coat lines convert flat blanks into fully finished enclosures, brackets and structural weldments under one roof.

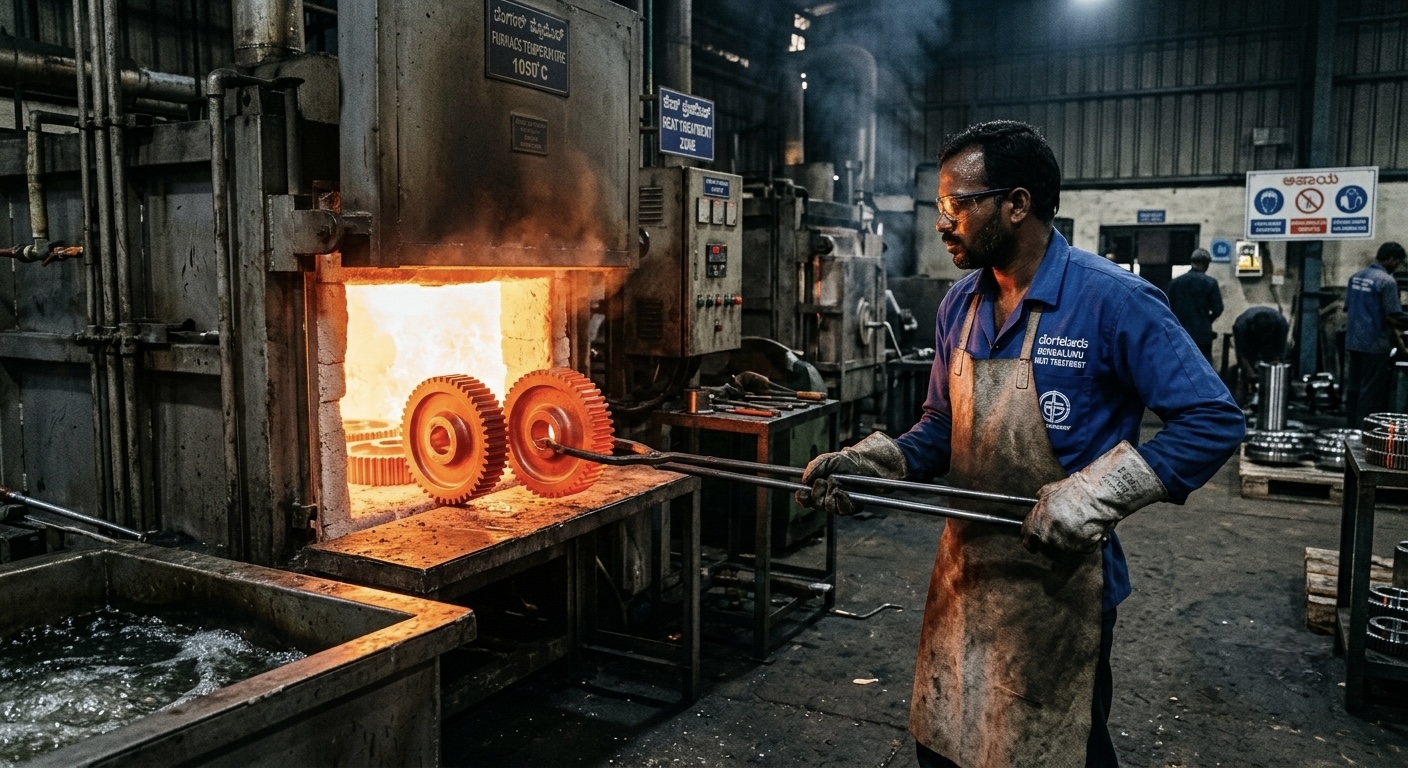

Through-hardening, case-hardening, induction hardening, tempering and stress relieving — process-controlled to your drawing's hardness and case-depth spec.
Sealed-quench and vacuum furnaces deliver repeatable metallurgy with minimal distortion and no decarburisation. Recipes are dialled in for each grade and geometry, then locked and traceable batch-to-batch.
Induction hardening lets us harden only the wear zones — journals, cam lobes, gear teeth — while keeping the core tough and machinable. Every batch ships with hardness and, on request, micro-hardness case-depth reports.

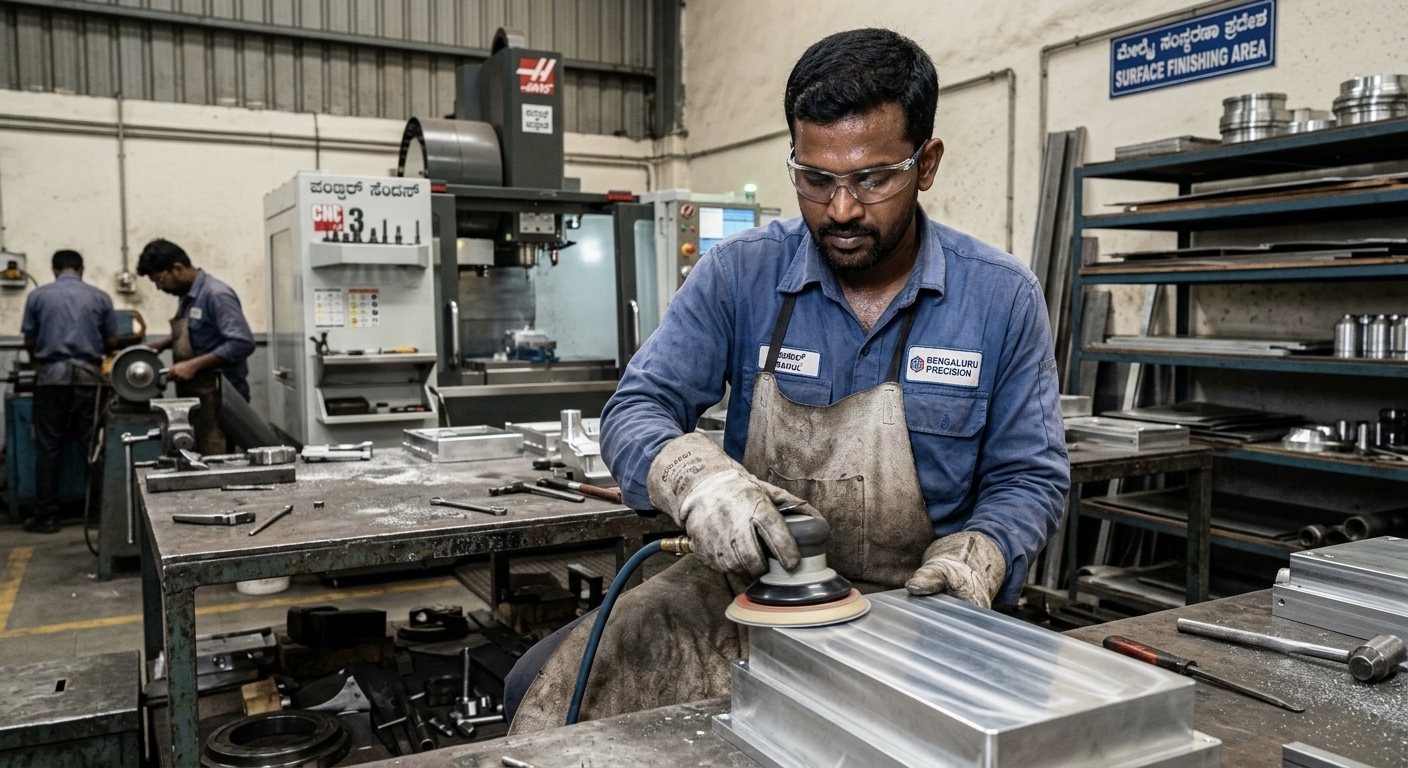

Decorative and functional coatings — corrosion protection, wear resistance, electrical insulation and aesthetic finishes — qualified to your end-application.
Type II and Type III hardcoat anodising, electroplating (Zn, Ni, Cr), black oxide, passivation, powder coat and wet paint are all sourced from qualified process houses with documented bath chemistry and salt-spray data.
Every coating spec — thickness, adhesion, colour, salt-spray hours — is called out on the router and verified on first article. You get a coating certificate, not just a coloured part.

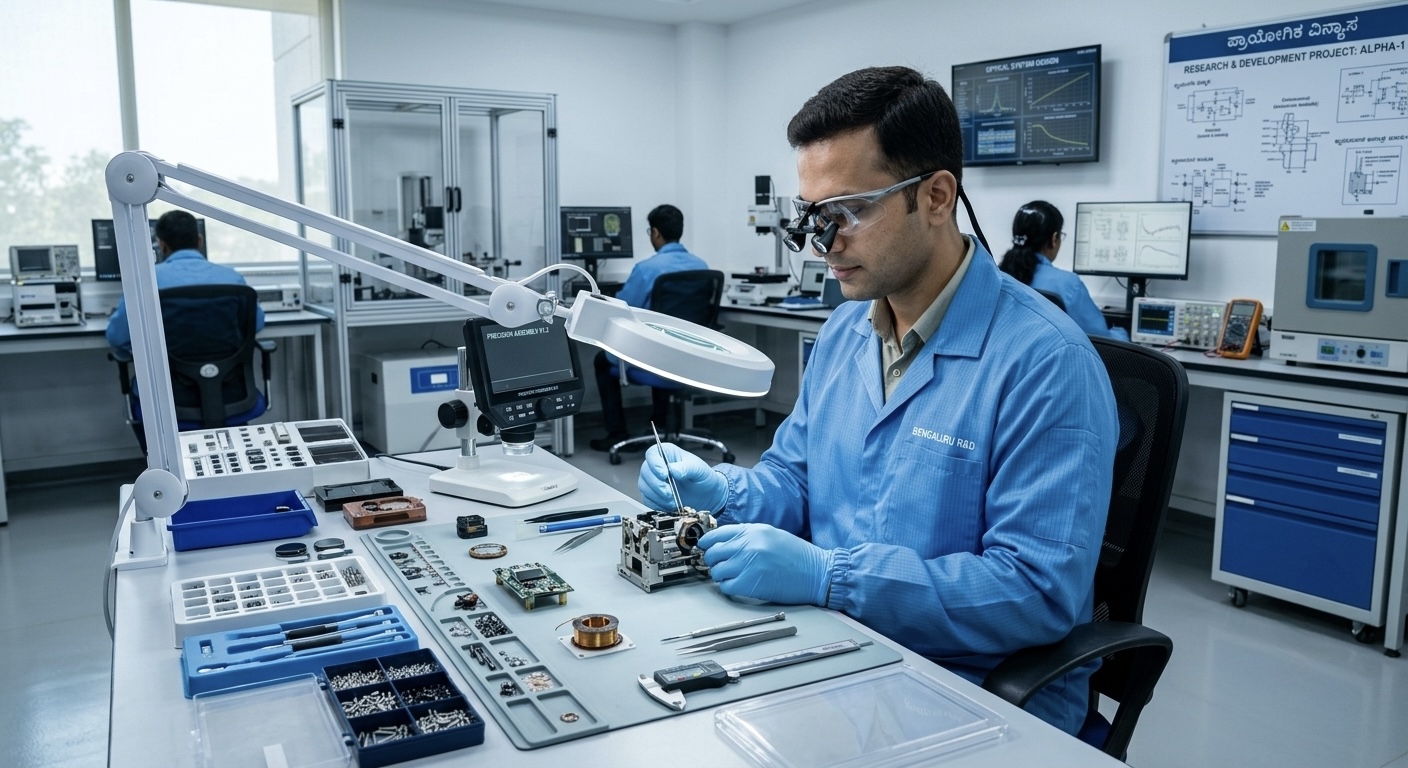

Mechanical and electro-mechanical sub-assembly with controlled torque, balancing and functional testing. Delivered ready-to-fit to your line.
Sub-assembly bays are ESD-safe, dust-controlled and equipped with digital torque drivers, press-fit stations and dynamic balancing rigs (G2.5–G6.3). Every fastener torque and press force is logged against the serial number.
Functional testing — leak, hi-pot, continuity, rotational run-out — is defined in a signed-off test plan before build. Sub-assemblies arrive at your line kitted, labelled and traceable to raw material heat numbers.
We work to your specified grade with mill test certificates (MTCs) on every batch. Don't see your grade? Ask — our network spans dozens more.

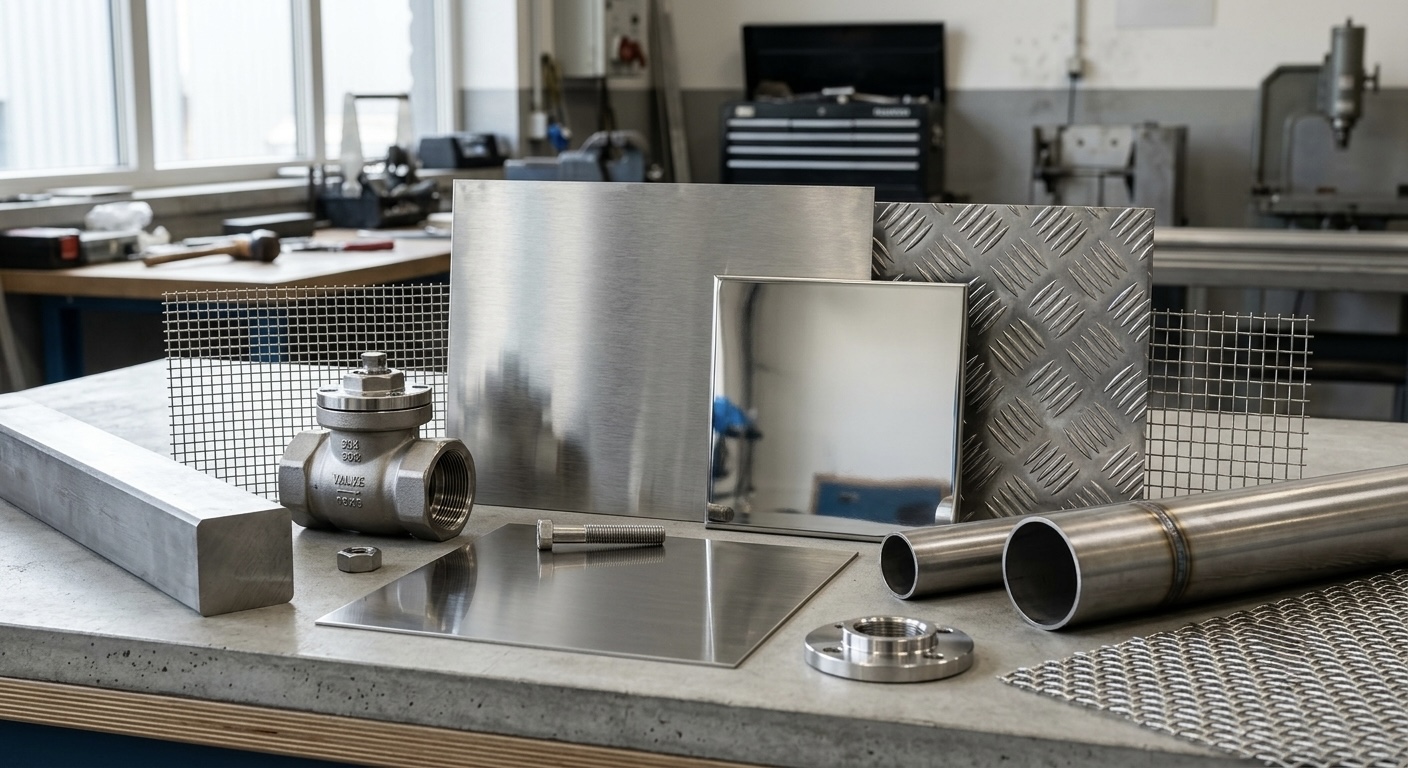

Material groupAustenitic 304 and 316L handle chlorides, food-contact and marine service without plating; martensitic 410/420 harden for wear parts; precipitation-hardened 17-4 PH combines strength (up to 1,000 MPa UTS) with corrosion resistance for aerospace and pump components.
Corrosion resistance, medical, food, marine.

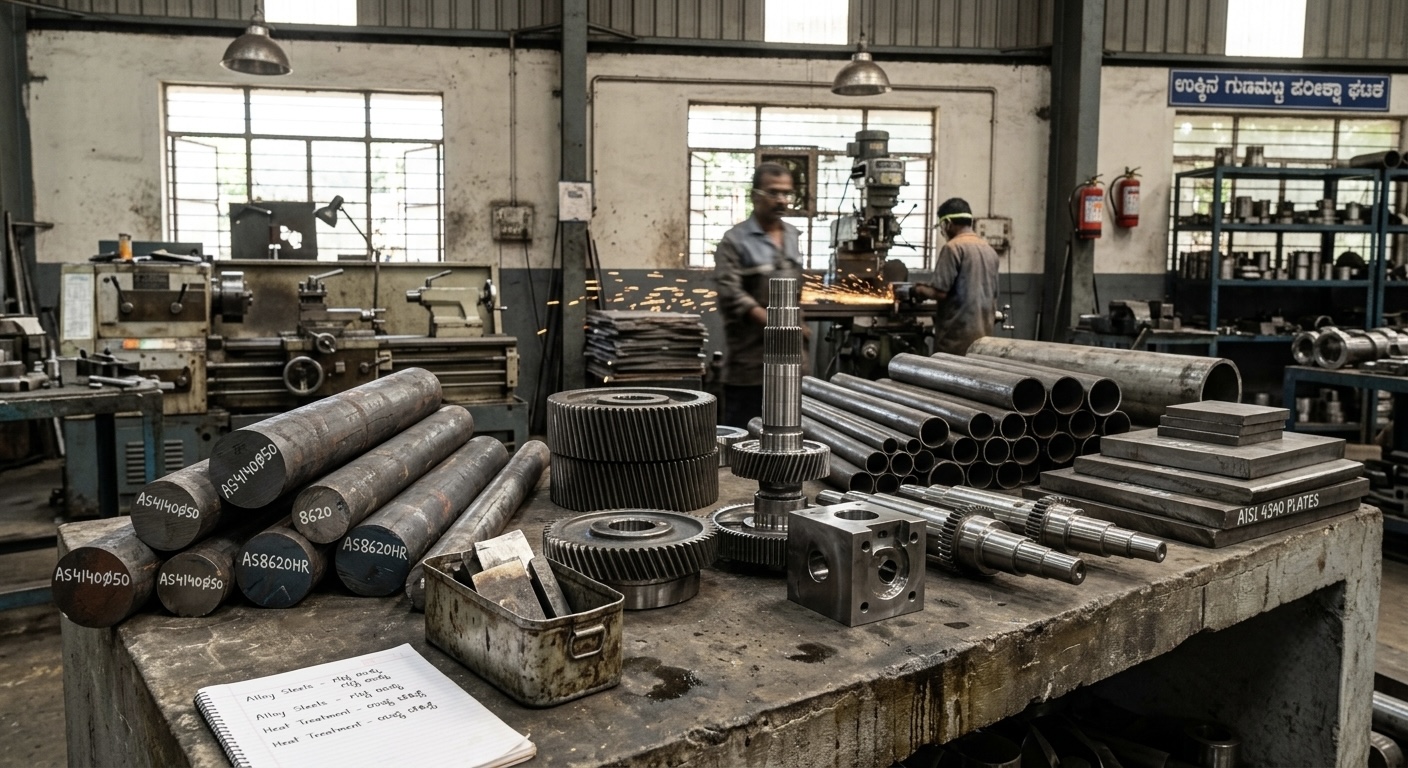

Material groupMedium-carbon alloys machined soft, then heat-treated to 28–55 HRC for torsional strength and fatigue life. EN24 and 42CrMo4 are the workhorse grades for motor shafts, gears, spindles and heavy-duty fasteners across automotive and industrial drivetrains.
Hardenable structural shafts & gears.

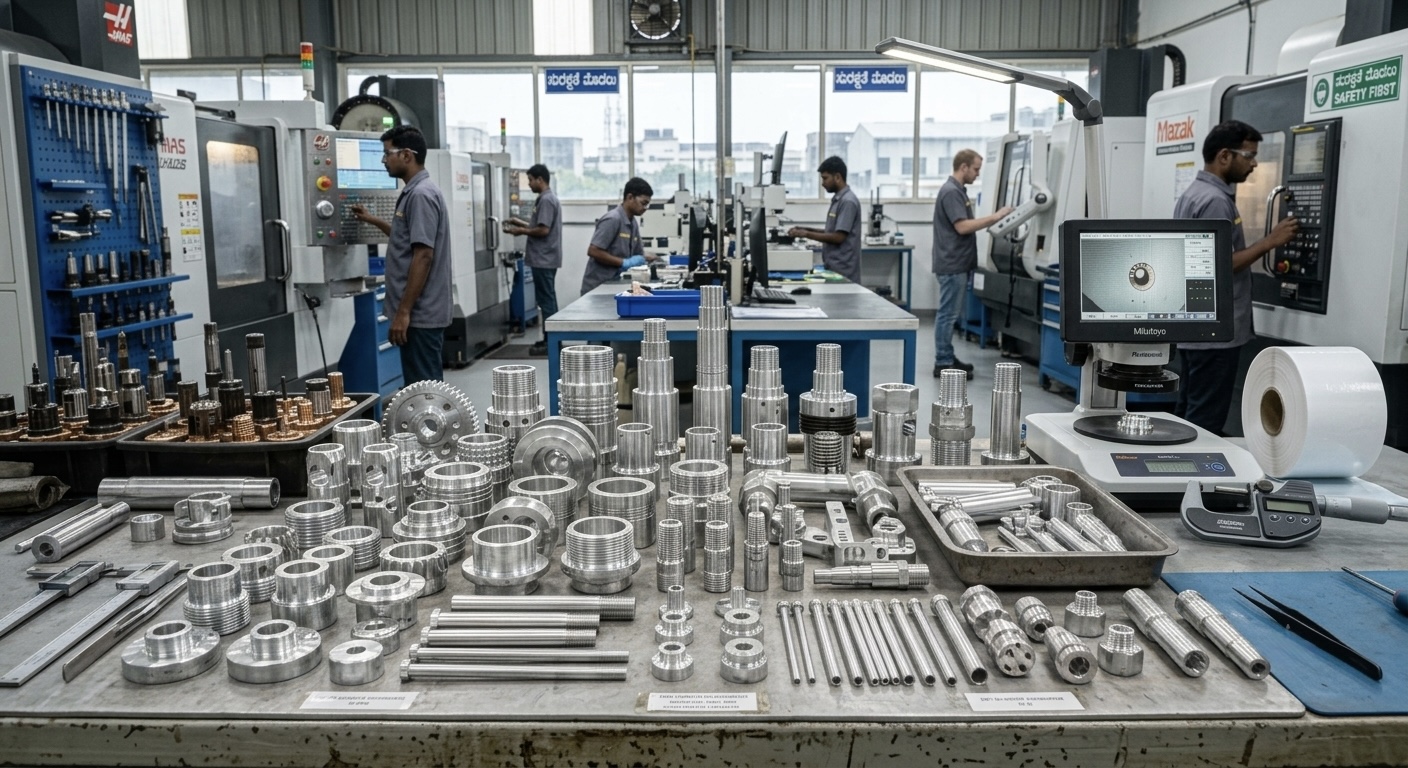

Material group6061-T6 is the all-purpose choice — weldable, anodisable, easy to machine. 7075 and 2024 deliver near-steel strength at one third the weight for aerospace structural parts. 5052 sheet forms cleanly for EV battery trays, enclosures and marine panels.
Lightweight aerospace, EV & enclosures.

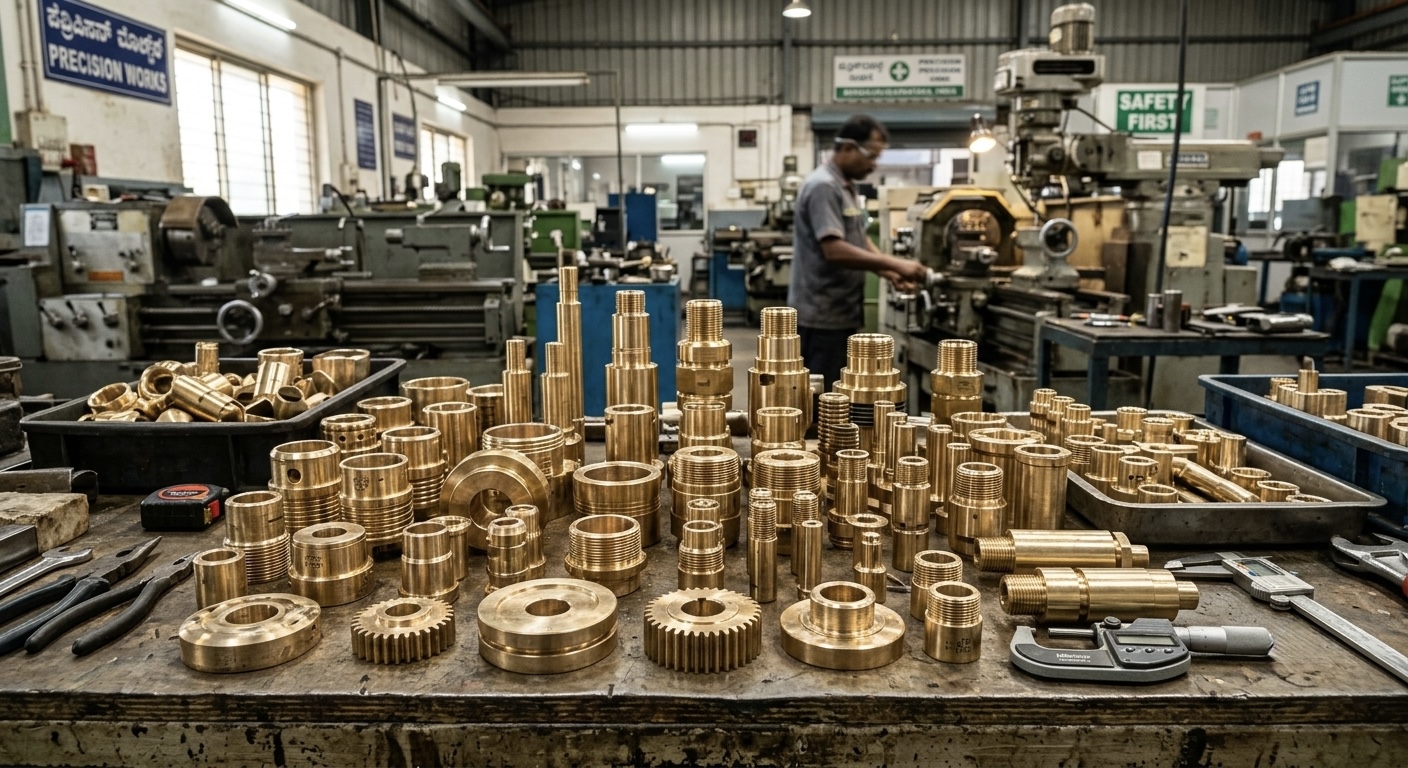

Material groupFree-cutting brass runs at very high spindle speeds with excellent chip control, making it ideal for high-volume Swiss-turned fittings, valve bodies, hose nipples and electrical connectors. Naturally corrosion-resistant in fluid and gas service and RoHS-lead-free grades available.
Connectors, fluid & gas fittings.

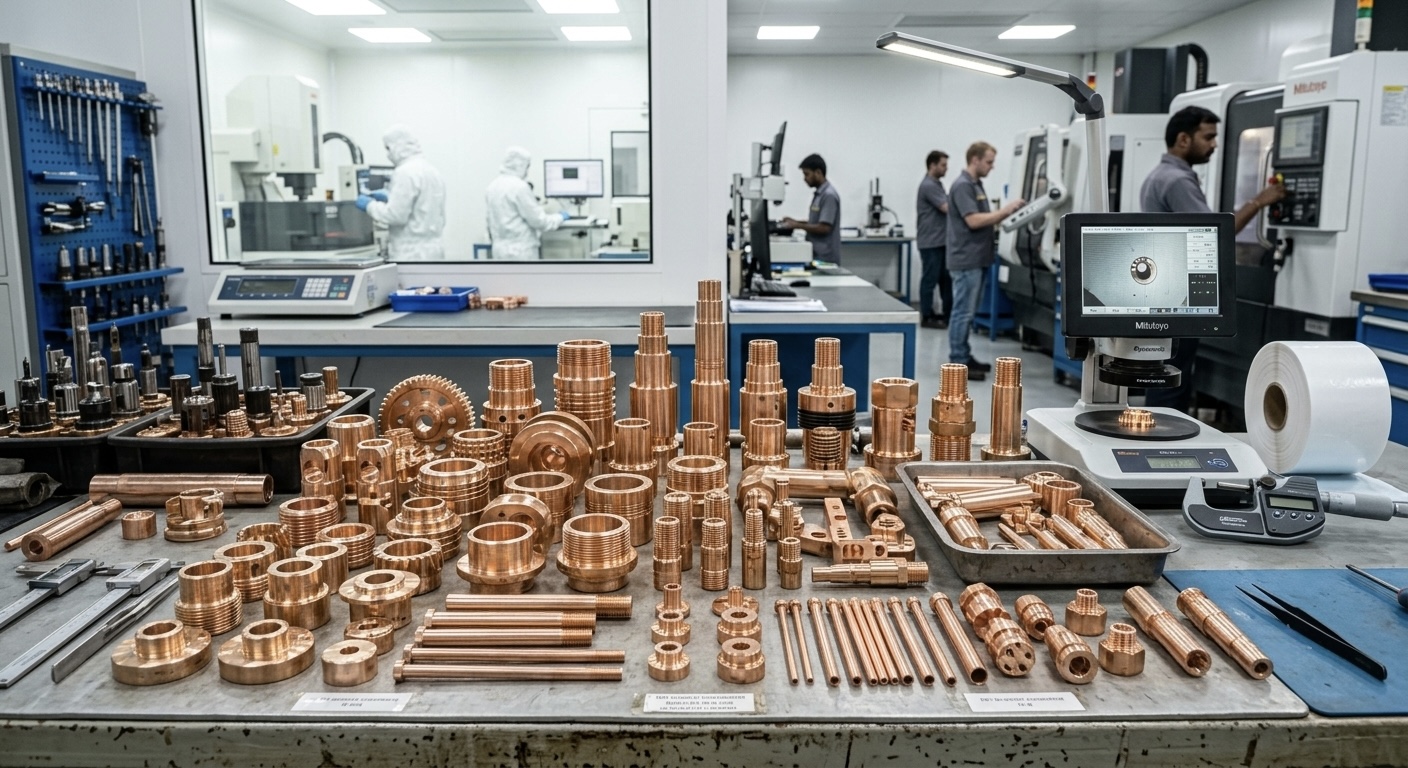

Material groupCu-ETP offers the highest electrical and thermal conductivity for busbars, heat sinks and grounding hardware. Beryllium copper (C17200) age-hardens to spring-steel strength while retaining conductivity — used in non-sparking tools, connectors and mould inserts.
Electrical, thermal, busbars.

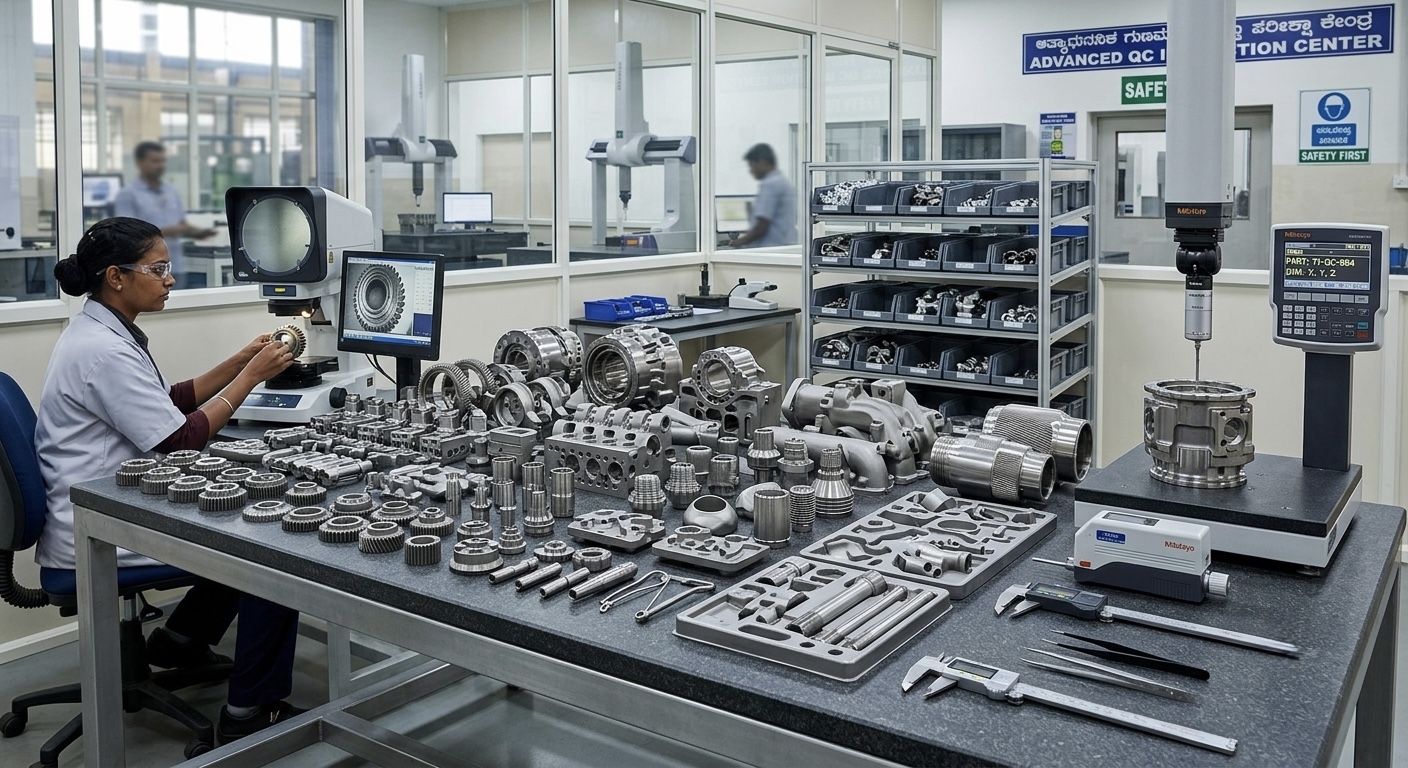

Material groupBest-in-class strength-to-weight, biocompatible and corrosion-proof in seawater and body fluids. Grade 2 is the formable commercially-pure grade; Grade 5 (Ti-6Al-4V) is the aerospace and medical implant standard. Machined with sharp, low-rake tools and generous coolant to manage heat.
Aerospace, medical implants, defence.

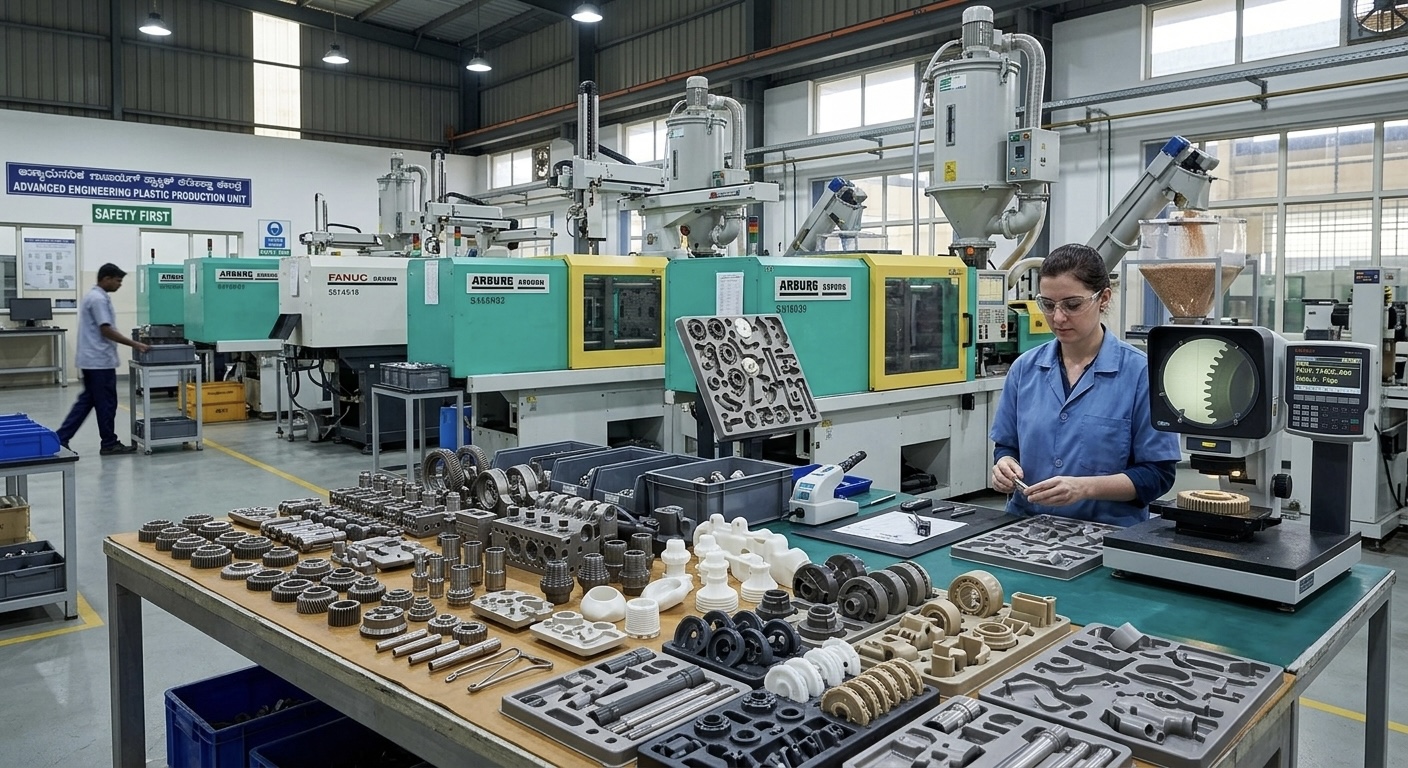

Material groupPEEK for high-temperature and chemical-resistant service (up to 250°C continuous). Delrin/POM for stiff, low-friction gears and bushings. Nylon and PTFE for wear, insulation and sealing. All grades machined to tight tolerances with stress-relief cycles between roughing and finishing.
Insulation, low-friction, lightweight.
Material groupNickel superalloys retain strength above 700°C for turbine, oil-and-gas and reactor components. Hastelloy and Monel resist chloride pitting and acidic media where stainless fails. Machined slow with ceramic or coated-carbide tooling and rigid setups to control work-hardening.
High-temperature / corrosive service.
Achievable on ground & honed features
Finer Ra 0.1 µm achievable on ground surfaces
Dimensional reports and Material Test Certificates (MTCs) ship with every delivery.
